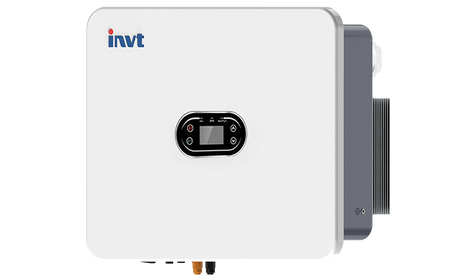

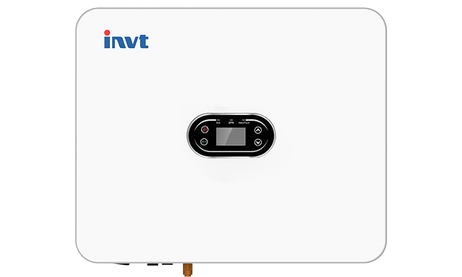

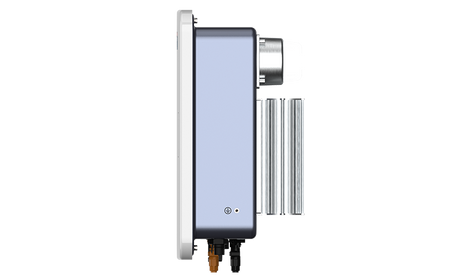

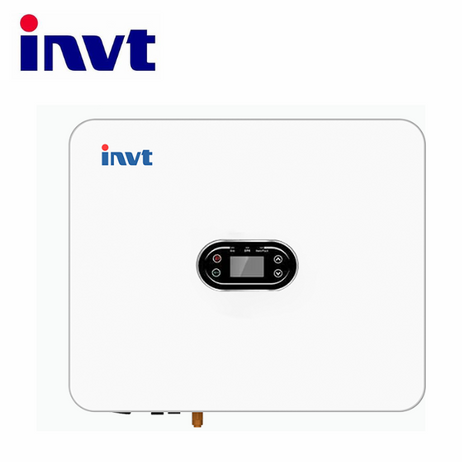

Inverter - Biến tần Hybrid INVT 5kW

Mã sản phẩm: 1229589 Tình trạng: Còn hàng Thương hiệu: INVT

Giá: 30,415,000₫

Số lượng:

Click vào đây để nhận ưu đãi

Cam kết 100% chính hãng

Miễn phí giao hàng

Hỗ trợ 24/7

Bảo hành

Mô tả sản phẩm

Model	XD5KTR	XD6KTR
Input（PV）
Max. PV Input Power	7.5kW	9kW
Max. PV Input Voltage	600V
Start-up Voltage	100V
Rated Voltage	360V
MPPT Voltage Range	100V - 550V
Number of MPP Trackers	2
Number of String per MPPT	1/1
Max. PV Input Current	16A
Max. Short Circuit Current per MPPT	24A
Output（AC）
Rated Output Power	5kVA	6kVA
Max. Output Power	5.5kVA	6kVA
Max. Output Current	22.7A	27.3A
Rated Voltage	230V
Rated Frequency	50Hz / 60Hz
THDi(@Rated Power)	<3%
Power Factor	0.8 leading~0.8 lagging
Output（EPS）
Max. Output Power	5kVA	6kVA
Max. Output Current Peak Output Power，Time	22.7A 7.5kW, 10s	27.3A 7.5kW, 10s
Rated Voltage, Frequency	230V, 50Hz
THDv(@Rated Power)	＜3%
Switch Time	＜10ms
Battery
Battery Type	Lithium, Lead-acid
Battery Voltage Range	40V - 60V
Max. Charge / Discharge Current	100A
Communication	CAN
Efficiency
Max. Efficiency	97.5%
EU Efficiency	97.2%
Battery Charge / Discharge Efficiency	95%
Protection
DC Switch	Yes
DC Reverse Polarity Protection	Yes
Anti-islanding Protection	Yes
AC Short Circuit Protection	Yes
Residual Current Monitoring	Yes
Insulation Resistance Monitoring	Yes
Ground Fault Monitoring	Yes
Over Current / Voltage Protection	Yes
I-V Curve Scan	Yes
Battery Soft Start Protection	Yes
Surge Protection	Type II
AFCI Protection	Optional
Communication
Display	LCD
Communication	RS485 / CAN / WIFI / 4G / LAN / Bluetooth
General Data
Dimension（W x H x D）	490 x 395 x 200 mm
Weight	<20Kg
Operating Temperature Range	-30℃～+60℃
Cooling Method	Natural
Protection Degree	IP66
Max. Operating Altitude	4000m
Noise	≤25dB
Relative Humidity	0~100%
Self-consumption	＜10W
Topology	Hight Frequency Insolation (For battery)
